ND1.93 Transparent Glass Micro Bead
ND1.93 Transparent Glass Micro Bead
ND1.93 Transparent Glass Micro Bead
ND1.93 Transparent Glass Micro Bead

ND1.93 Transparent Glass Micro Bead

  • Brand 3G
  • Origin china
  • Delivery time 7 days
  • Supply capacity 5000 kg

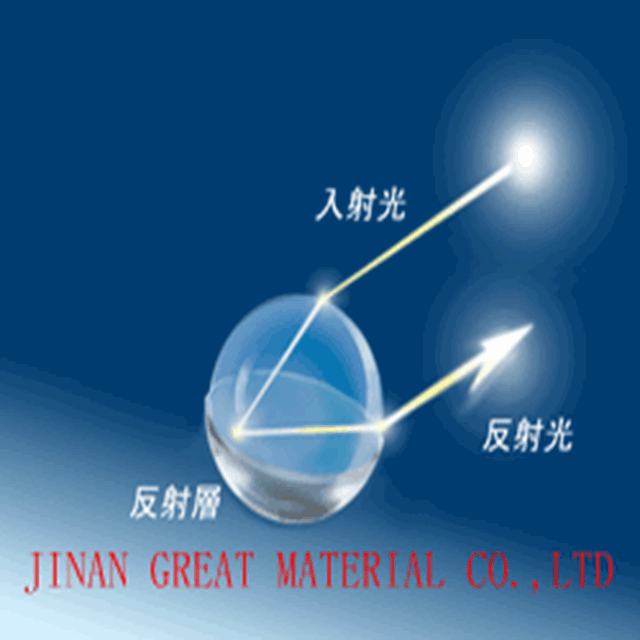

ND1.93 glass bead is high reflective glass bead, used for “Exposed-Lens” type retro-reflective articles (e.g., open-type reflective sheets, reflective fabric. reflective tape, reflective yarn) and “Encapsulated-Lens” type retro-reflective articles (e.g., high intensity grade reflective sheet).
the glass microbeads also called reflective powder, can be used for reflective ink, paint and in the fields of personal security and protective products.

Feedback    Download
Details

Technical Data

Composition

BaO-SiO 2-TiO 2 GLASS

Refractive Index

1.93±0.01

Specific Gravity

4.1±0.2 g/cm3

Color

White

Form:

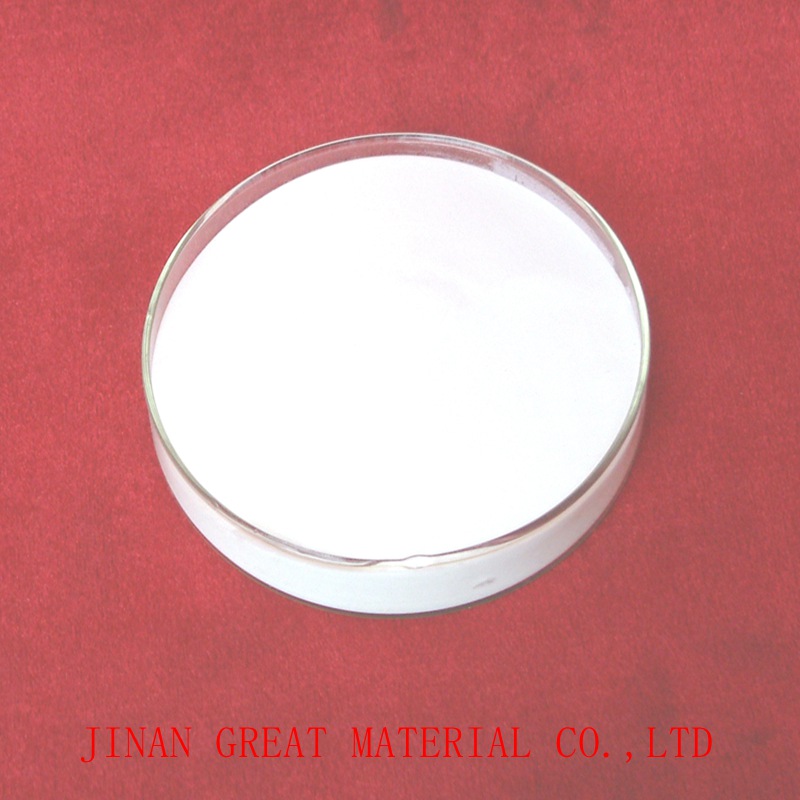

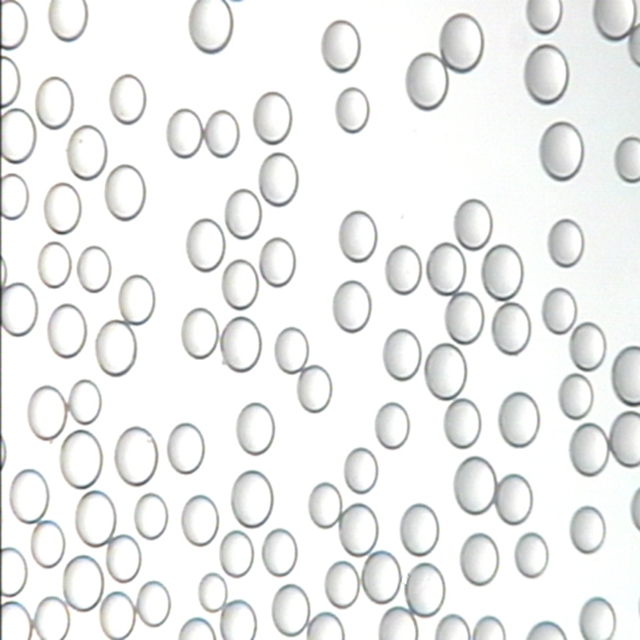

Fine spheres powder

Size

75-90um;60-80um;

50-70um;40-60um;

25-40um;10-25um;

(can be provided by specific request)

Roundness

≥95%

Opacity

≤1%



Brightness



400-600 CPL  for different type;

The brightness of glass beads used in the reflective fabric meet the EN-471 standard .



Package :

25kg / barrel (Volume:  31 cm x  18.5 cm), lined with two plastic bags .

Net Weight: 25kg/barrel      Gross Weight: 26kg/barrel

40 barrels can be packed onto a pallet.


Storage :

Dry and sheltered


Usage:

ND1.93 glass bead is used for  Exposed-Lens” type retro-reflective articles   (e.g.,  open-type reflective sheets, reflective fabric. reflective tape, reflective yarn) and  “Encapsulated-Lens” type retro-reflective articles  (e.g.,  high intensity grade reflective sheet ). It c an also be used for reflective ink, paint and  in the fields of personal security and protective products.




Solution of getting strong retro reflective:

a. Ink must be clear and transparent, Grey. Yellow. Red will be better.

b. Firstly ,print aluminum powder as foundation. Then print with the mixture of ink and glass bead.(Aluminum coated glass bead need not)

c. Make the glass bead on the paint surface as more as possible.(ND2.2 glass bead need not)
